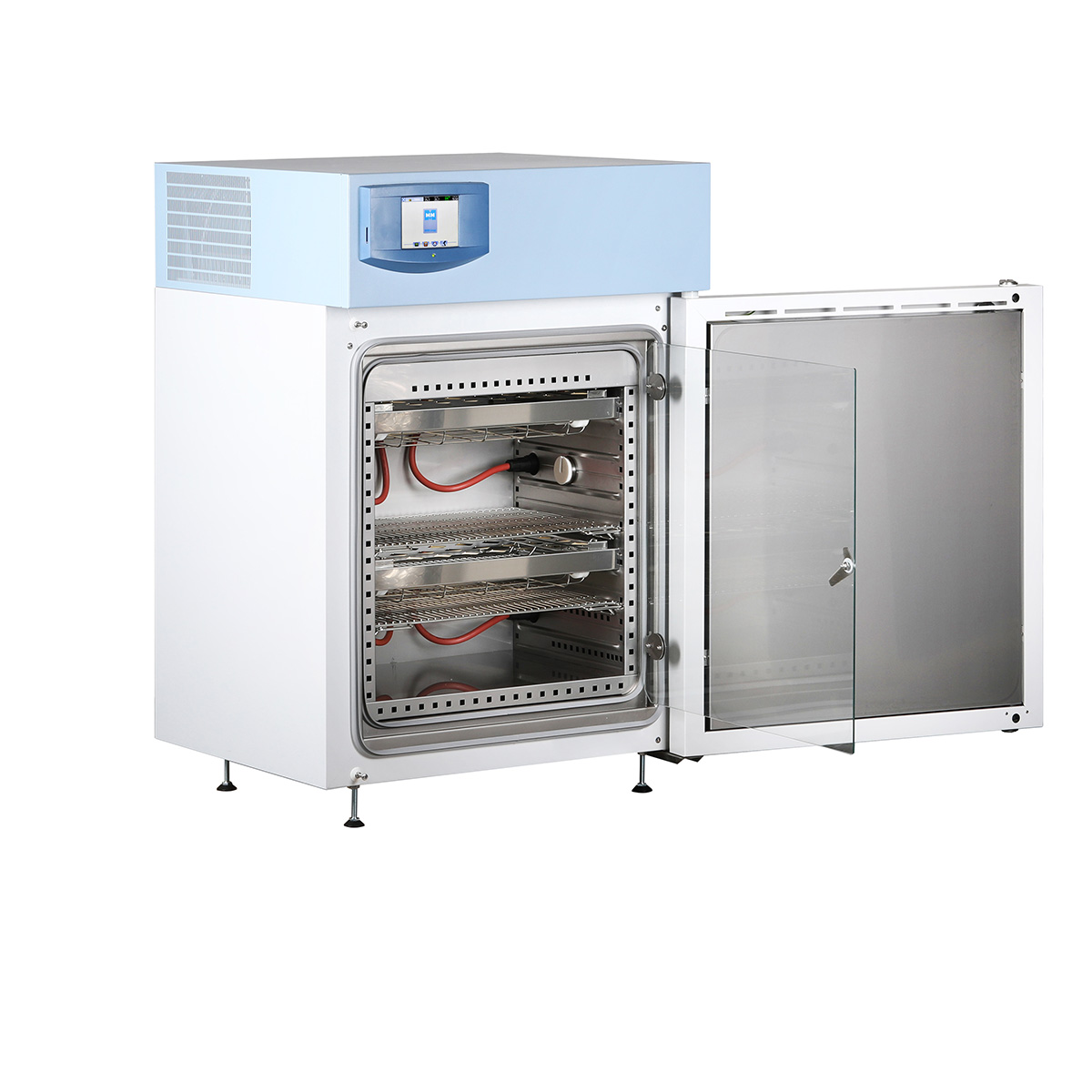

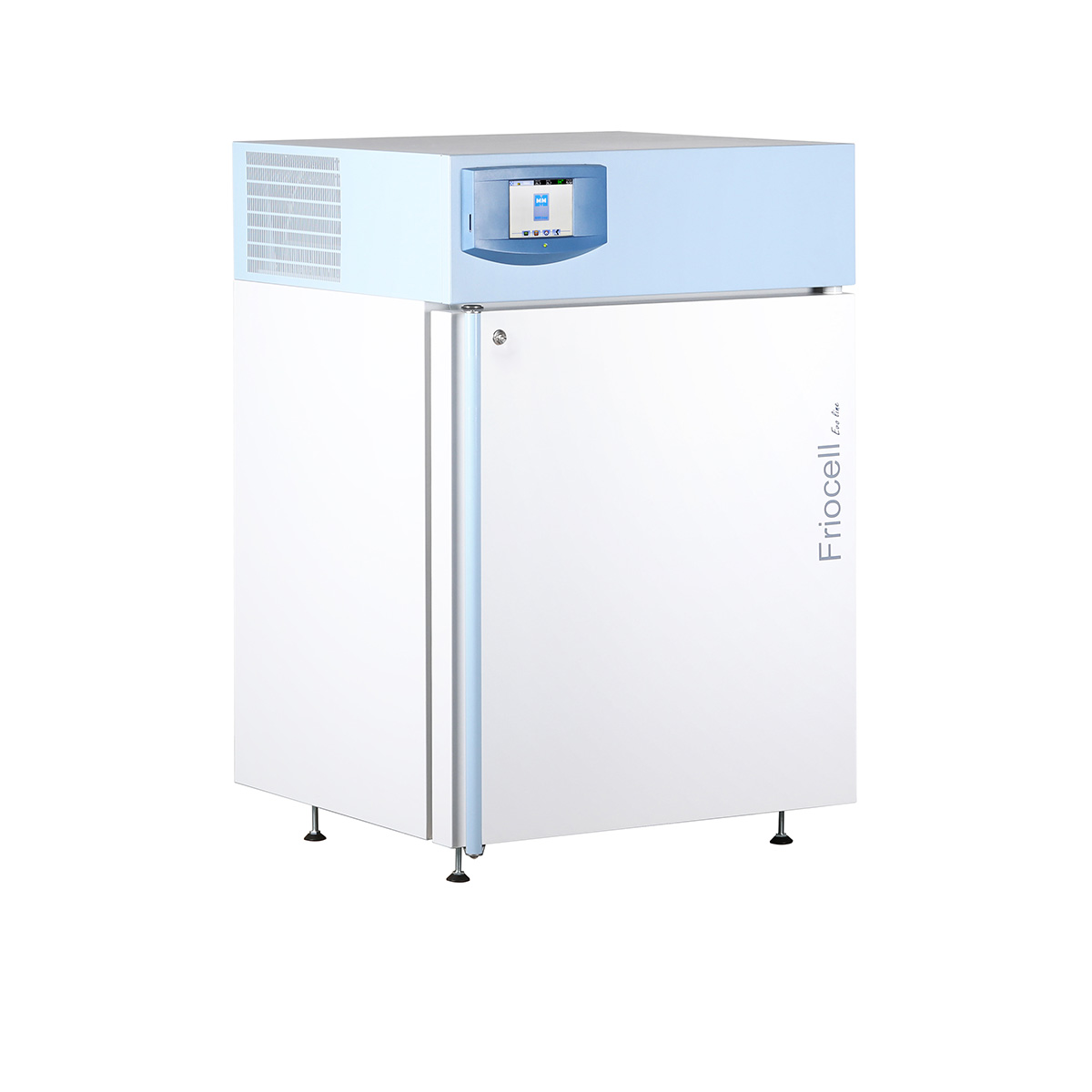

The FRIOCELL 111 EVO refrigerated incubator is suitable for demanding applications in microbiology, biotechnology, pharmaceutical manufacturing, quality control, food processing, cosmetics, botany and research. The active cooling system combined with forced vertical airflow enables precise simulation of thermal conditions, short stabilisation times after door opening and reduced sample evaporation.

The inner glass door allows the chamber contents to be observed without directly exposing them to the surrounding environment, while the fan speed can be adjusted from 0 to 100% to suit different loads and processes.

The EVO controller provides an intuitive graphical interface through a 5.7-inch colour touchscreen. It supports up to 100 programs, each with up to 100 segments, including temperature ramps, real-time programming and repeat cycles. It incorporates annual data logging in graphical and numerical formats, an SD card, USB Host and RS 232, together with multi-level user management, password protection and data-integrity functions aligned with regulated environments and FDA 21 CFR Part 11 principles. Ethernet connectivity, remote control and WarmComm 4 software are available depending on the selected configuration.

Technical information:

- Usable volume: 111 L

- Air circulation: forced, with fan speed adjustment from 0 to 100%

- Thermal system: heating and active cooling

- Temperature range: 0 to 100 °C

- Options: cooling down to -20 °C and thermal chamber decontamination up to 160 °C

- Approximate time accuracy: ±0.2 °C

- Approximate spatial deviation at 10 °C: ±0.5 °C

- Cooling time from 22 to 10 °C: approximately 21 minutes

- Heating time to 37 °C from ambient temperature: approximately 11 minutes

- Recovery after the door is opened for 30 seconds: approximately 5 minutes at 37 °C

- Inner chamber: DIN 1.4301 / AISI 304 stainless steel

- Inner door: safety glass

- Internal dimensions (W × D × H): 540 × 380 × 535 mm

- External dimensions (W × D × H): 780 × 755 × 1187 mm

- Trays: 2 included; maximum of 7

- Usable area per tray: 520 × 335 mm

- Maximum load: 50 kg per unit and 20 kg per tray

- Power supply: 230 V, 50/60 Hz

- Maximum power input: 1000 W

- EVO controller: 5.7-inch touchscreen, Fuzzy Logic, up to 100 programs and 100 segments per program

- Standard interfaces: SD card, USB Host and RS 232

- Qualification available: IQ/OQ
